‘Dash 5’ upgrade for most successful Vögele paver

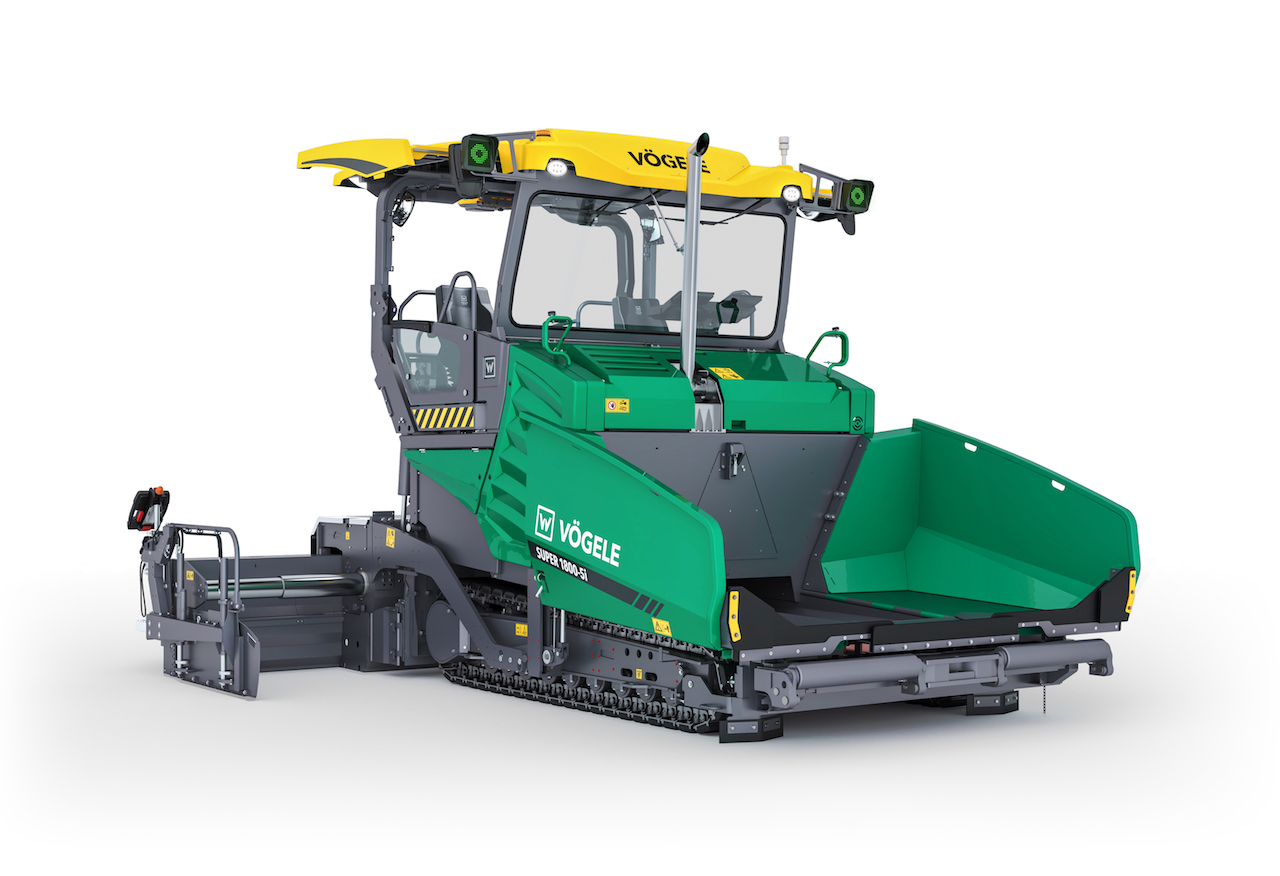

New SUPER 1800-5(i) with smart automatic functions, improved user-friendliness, and optimized drive
JOSEPH Vögele AG have integrated their most popular model into the ‘Dash 5’ generation: Like all the latest-generation road pavers, the SUPER 1800-5(i) combines user-friendliness, automation, economic viability, and sustainability. With paving widths between 2.55m and 10m, high performance, and compact dimensions, the Universal Class representative is also the most versatile Vögele paver.
Measuring 6.15m in length, the SUPER 1800-5(i) paver is particularly compact for its class and, with 129kW of power and a laydown rate of 700 tonnes/h, well suited to a wide range of applications, from city centre measures to paving motorways.
The new ‘Dash 5’ technologies include the ErgoPlus 5 operating system, new assistance and automatic functions, improved material management, a sustainable drive concept, additional comfort features, and a new lighting system.
‘The SUPER 1800-5(i) is two steps ahead of its ‘Dash 3’ predecessors,’ explained Bastian Fleischer, product manager at Vögele. ‘We have considerably improved the user-friendliness, sustainability, economic viability, and automation in this new generation of pavers.’
As the ErgoPlus 5 operating system shows, the focus is on the users: Compared with the ‘Dash 3’ version, the paver operator’s console offers improved visibility, better comfort and ergonomics, and everything that is needed for networked road construction.
Vögele have simplified the operation of individual functions, improved the design, reduced the construction height to increase legroom, and integrated additional storage options for mobile phones or similar. The SUPER 1800-5(i) also offers more precision steering than its predecessor thanks to Smartwheel, whilst the optional ‘Premium Touch’ display screen allows users to easily monitor and control existing and future digital solutions.
The Paver Access Control (PAC) function and the Light Package Plus also offer increased comfort, efficiency, and safety. PAC allows users to operate the SUPER 1800-5(i) from the ground at the touch of a button. The control unit placed on the screed plate can be used to control all the initial steps safely and conveniently.
The optional Light Package Plus provides additional security and reduces set-up times on night-time construction sites. The LED beamers are integrated into the roof structure and light up the whole operating width of the paver and screed area.
The SUPER 1800-5(i) also has additional assistance and automatic functions to support users. For example, Niveltronic Plus Assist automates the laying of both crown and transverse profiles. Users simply specify the incline of a target point and the machine takes over by gradually approaching this value. This means users no longer need to gradually adjust the incline by hand and guarantees a seamless paving result, especially for changing profiles.
The screed width can also be automatically controlled along a tensioned wire with the new Edge Control system. The automatic screed width function ensures that the edge and pave width of the screed remain constant when there is no tensioned wire at an exit or entrance.
Even without the new functions, the SUPER 1800-5(i) scores well, with reduced fuel consumption and reduced CO2 and noise emissions. In order to achieve this, Vögele have also reworked the drive concept. The new four-cylinder motor consumes significantly less at the same power. This is primarily due to the optimized Vögele EcoPlus low-emissions package. In particular, the speed-controlled fan has been optimized to calculate the rev/min even more accurately and, in conjunction with other measures, substantially reduce noise emissions.
The reworked control of the material transport system also plays an important role in the reduced fuel consumption and increased efficiency. The auger and conveyors now communicate with one another, ensuring that material feed is even more consistent and precisely co-ordinated. This avoids load peaks, saves fuel, and ensures an optimum head of mix, thereby allowing uninterrupted paving.
The optional Power Tunnel also ensures an optimum material height in front of the screed plate. The retraction and extension of the limiting plates for the auger tunnel can be controlled at the same time as the screed width adjustment.
The new Vögele paver achieves optimum pre-compaction in conjunction with the AB 500 and AB 600 ‘Dash 5’ extending screeds or with SB 300 rigid screed plates, whilst the hydraulic tamper height adjustment ensures excellent paving quality and reduced set-up times. The Dual Power Shift Tamper allows operators to set the tamper stroke very easily at the touch of a button. Compared with mechanical adjustment, this saves a lot of time and is very practical, especially with changing layer thicknesses.
A new guide and positioning system for fitting screed wideners and more efficient heating of the compacting systems also significantly reduce set-up times. Vögele have also achieved substantial noise level reductions through structural optimizations.
