Hillhead 2003
What’s new at this year’s international quarrying and recycling show

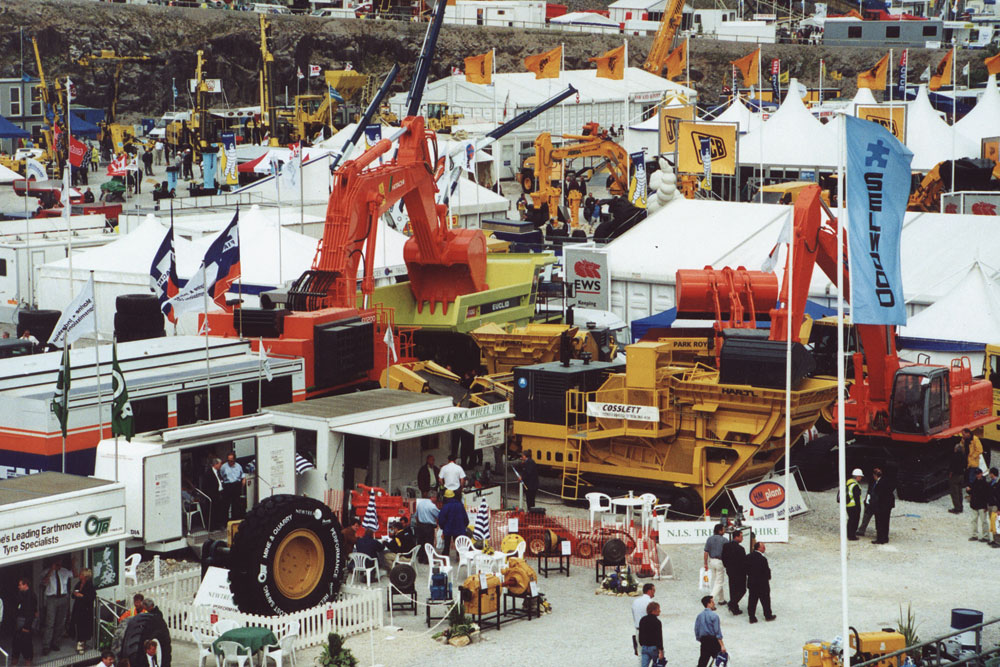

Next month over 430 companies from around the world will converge on Tarmac Central’s Hillhead Quarry, near Buxton, Derbyshire, UK, to showcase their latest plant, equipment and services for the quarrying, recycling and associated industries. Over the following nine pages Quarry Management presents a brief glimpse of just a few of the new products and exhibitors making their debut appearance at Hillhead 2003 from 24–26 June.
Drilling, Blasting & Breaking
Co-Ordinated Surveys
Alongside their face-profiling and surveying exhibits, Co-Ordinated Surveys will be showing Volume.4, a new software package specifically designed to calculate volumes of stockpiles, overburden, voids etc. Developed to suit users of the company’s well established Quarry.4 face-profiling system, the software includes automatic modelling of surveys and detailed reporting with 3D views. Volume.4 can be purchased for use with existing face-surveying equipment or as part of a complete package called LaserAce Stock Solution. This package comes complete with the MDL LaserAce, a light, easy-to-use laser which will also be on display at the show. Tel: (01492) 870277
HammerTech Ltd
At Hillhead 2003 HammerTech will be launching an entirely new range of hydraulic breakers comprising models which are said to be more efficient, powerful and productive, and quieter, than conventional breakers. The HammerTech breaker operates by the build up and release of strain energy using the novel technology of elastic power springs, with the result that virtually no vibration is carried through to the machine and operator. Whereas conventional high-frequency breakers with strike rates reaching over 2,000bpm tend to ‘drill’ the chisel through material, the slower, more powerful 70bpm strike rate of a HammerTech breaker is said to result in greater damage, ensuring larger pieces are produced, which in turn speeds up the breaking process. Using this technology, mini 1.5-tonne crawlers can now carry a 500 joules/blow hammer and 2.5–3-tonne crawlers can carry a 1,000 joules/blow hammer. Tel: (01733) 355810
IP Equipment Sales Ltd
IP Equipment Sales will be using Hillhead as the launch pad for the new Montabert 125SX silenced hydraulic breaker for use on carriers from 4 to 10 tonnes. A new working principle reduces the number of parts, while Autopower (automatic regulation of flow and pressure) and Optipower (an energy recovery system) ensure that maximum and constant energy is maintained for all carriers regardless of flow or temperature variations. With an operating weight of 373kg, silencing and reinforced elastic suspension as standard, protection against blank-firing and a single sealed accumulator, this high-specification breaker is said to achieve excellent levels of productivity and economy. Tel: (0161) 864 4770
Mincon International Ltd
Mincon Rockdrills will be launching their new 4HF hammer, a tool dedicated to high-pressure operation for 110–130mm diameter blasthole drilling. Trials in limestone at 25 bar have achieved penetration rates of 73m/h, some 37% faster than most other types and makes. Alongside the 4HF will be the new 3.5HDS hammer for super-fast drilling of 95–104mm holes, plus other popular models to complete the range. Also on show will be the latest range of 4HDS 10-spline heavy-duty bits, which are already providing good service life at high speeds with cost advantages. Tel: (01422) 842444
NOMIS Seismographs
NOMIS Seismographs will be unveiling the NOMIS SuperGraph seismograph at Hillhead 2003. This new unit features a state-of-the-art, highly efficient 32 bit microprocessor and benefits from extended battery life. Tel: +1 205 592 2466
Skelair International Ltd
Skelair International, distributors of the Ingersoll-Rand rock-drilling solutions range of drill rigs and associated consumables for the UK and Ireland, will be showing one of the new Ingersoll-Rand 700-series drill rigs — the CM-780D, a self-contained machine equipped for down-the-hole drilling applications. Also on the stand will be a Klemm Bohrtechnik ground-engineering machine, a Marini Quarries Group Mini Mast mounted on a mini-excavator, and a wide range of drilling consumables including hammers, bits, oils and drill rods. Tel: (01477) 539100
Mobile Plant & Equipment
CNH (UK) Ltd
CNH will be using Hillhead to unveil the latest addition to the Case D-Series wheel loader line-up. Like its smaller stablemates, the 521D and 621D, the new 721D features a stylish design and incorporates an innovative configuration which places the engine at the rear for improved service access and weight distribution. The resulting space between the cab and the engine provides room for the Auto-Clean cooling system, which forms an integral part of the electronic management system to ensure the machine operates efficiently and productively, even in dusty conditions. The 721D (and 721DXT tool carrier) produces 135kW from a fuel-efficient Case engine, while an on-demand automatic power-boost feature increases this to 146kW. Bucket capacities on the 721D range from 2.3m3 to 2.7m3. Fax: (01302) 802126
Caterpillar – Finning (UK) Ltd
Caterpillar will be demonstrating the latest solutions to help customers increase productivity, improve safety and deliver more value from their investment. Their exhibits will include the new range of G-Series II wheel loaders, the new B-Series telehandlers, and the E-Series rigid dumptrucks. Specialist re-handling machines will also be featured including the 226 skid-steer and 908 wheel loader. Another attraction will be the new 330C long-reach excavator fitted with a heavy-duty undercarriage for increased stability. Tel: (01543) 461461
Goodyear
On display for the first time will be two new tyres from Goodyear, the RT-3B and the MC 1A. With a rugged construction and offering excellent lateral stability, the RT-3B is described as a major advancement for wheel loaders, dumptrucks and graders. The MC 1A’s high contact surface and solid shoulder rib design make it suitable for crane applications. Tel: (0121) 306 6329
Hydrema (UK) Ltd
Hillhead will mark the official UK launch of the Hydrema 922 articulated dumptruck, a completely new 22-tonne payload hauler designed and built around traditional ADT principles with an emphasis on weight, power, stability and off-road performance. Also on show will be the recently launched 912C – the Mark 5 version of the popular 10-tonne payload ADT – which comes with the latest Stage II engine and a suspended operators cab. Tel: (01765) 641940
JCB
Adding weight to JCB’s articulated dumptruck offering will be the new JCB 722 twin rear axle machine, which will be aimed at the key UK, European and ‰ North American markets, particularly the quarrying sector. Key features of the machine include a patented self-levelling front suspension, a 225hp six-cylinder Cummins engine, a ZF Smoothshift transmission with torque converter and differential lock, ZF axles and a 20-tonne capacity 74º tip body. Also making an appearance will be the new JCB 540-70 Loadall telehandler which offers a lift height of 7m and a payload capacity of 4 tonnes. In addition, joining the line-up will be the new four-wheel-drive JCB 456HT Wastemaster loading shovel. Designed for the re-handling industry where visibility of the loader end is vital, the 20-tonne machine features a raised cab and a four-ram geometry loader end which provides an additional 960mm of load-over height over the standard arm. Tel: (01889) 590312
Liebherr Great Britain Ltd
Liebherr will be launching two new machines at Hillhead 2003. Making its first appearance in the UK will be the R964B Litronic SME (super mass excavation), a 70-tonne excavator featuring an oversize undercarriage, 7.0m heavy-duty gooseneck boom, 2.6m stick and a range of hard-dig rock buckets with capacities ranging from 4.0m3 to 4.5m3. Powered by a Liebherr V6, direct-injection, turbocharged and aftercooled diesel engine that develops 270kW at 1,800 rev/min, the machine offers four operating modes and has a maximum digging force of 337kN and a breakout force of 367kN. Also making its UK debut will be the PR734 Litronic hydrostatic bulldozer. With an operating weight of 22 tonnes and an engine rated at 147kW, the machine is said to be the best-performing dozer in its class. Tel: (01707) 268161
Michelin Tyre plc
Michelin’s extensive product display will include the latest addition to the X-Quarry range – the 21.00R35 for 50-tonne capacity rigid dumptrucks – as well as the new 65-series XAD low-profile tyre for articulated dumptrucks up to 40 tonnes capacity. Tyres for wheel loaders, such as the XLDD2, X Mine D2, XSMD+ Slick and the latest low-profile XLDs, will also be featured. In addition, tyres for the latest generations of compact construction machines, such as the XZSL range (the first-ever radial-ply tyres for skid-steer loaders), will be on display along with tyres for compact wheel loaders and telehandlers. Michelin say an initiative with direct relevance for the recycling industry will also be revealed at Hillhead. Tel: (01782) 402867
Millers Oils Ltd
First-time exhibitors Millers Oils will be showing their brand new range of plant and transport engine oils. A full synthetic, a long-drain semi-synthetic, a high-performance E5 for Euro III engines and a standard-performance mixed-fleet oil satisfy all sectors of this market. In addition, new biodegradable hydraulic oils are also on offer to meet the growing demand for environmentally friendly lubricants. Millers Oils also offer a comprehensive MillerCare oil-analysis system. Tel:(01484) 713201
Mitas UK Ltd
First-time exhibitors Mitas UK, sole importers of Mitas off-road tyres from the Czech Republic, supply both British heavy plant manufacturers and nationwide distributors for the replacement market. Continual development of new products together with investment in the production of radial tyres are Mitas’ main aims for this year and next. Examples from a broad range of earthmoving tyres will be displayed at the show. Tel: (01553) 817740
OTR Tyres Ltd
OTR will be launching Remould tyres for the earthmover market at this year’s exhibition. Manufactured using state-of-the-art equipment and the latest synthetic rubber compounds, the RTH and RTDN tyres offer the performance, appearance and integrityof a new tyre with the environmental and financial benefits of a retread. In addition to Remoulds, OTR will be unveiling the latest ‘harsh environment’ tread pattern for their NewTread product and showing the traditional ‘smooth and groove’ retread with an OTR Fil option. Tel: (01773) 520885
RUD
Tyre chain specialists RUD will be showing their new PTL forged slip ring which is designed to allow free movement of the tensioning chain around the wheel. After instruction from a qualified RUD service engineer, the user will be able to maintain the correct tyre chain tension, thereby improving chain performance and chain life, as well as reducing downtime to a minimum. Tel: (01227) 276611
Vacu-lug Tyres
The latest additions to the Vacu-lug off-road product range will be exhibited at this year’s show. These include: the Yokohama RT31, a specialist ADT tyre available in 23.5.25 and 26.5.25 sizes; and the new Bandag off-road product range featuring the latest up-to-date tread designs to meet customer requirements for durability and cost savings. Tel: (01476) 593095
Processing Plant & Equipment
AKW Apparate + Verfahren GmbH u. Co. KG
First-time exhibitors AKW Apparate + Verfahren, specialists in the supply of processing plants for kaolin, feldspar and silica sand, will be exhibiting their complete range of wet-processing equipment including free-fall classifiers, spiral separators, hydrosizers, hydrocyclones, free-fall cyclones, flat-bottom cyclones, washing drums and clarifier-thickeners. The company can provide integrated plants for the production of industrial sand as well as combined processing systems for special applications. They also undertake large-scale projects, offering turnkey solutions. Tel: +49 9622 180
Allmineral
First-time exhibitors Allmineral will be showing their Alljig air-pulsed jigs and Allflux fluidized-bed separators at this year’s show. The company specialize in equipment for solving lignite and shale problems, and the production of customized sand products. Tel: +49 20 6699 170
BL-Pegson Ltd
A total of eight crushing plants from BL-Pegson will be on display and demonstration at Hillhead 2003, including three new designs each making their debut appearance – the 1165HR, the 4242SR and the 1000SR. The 1165HR is a development of the successful 1100 x 650 Premiertrak crushing plant incorporating a special jaw crusher design featuring both hydraulic setting adjustment and overload protection. Mounted on a single track and featuring diesel hydraulic drive, a magnet and side conveyor, the 4242SR is a closed-circuit impactor plant using the proven 428 Trakpactor and a double-deck screen for recirculating oversize back to the crusher. It produces a controlled top-size product as standard with the option to produce a clean, controlled single-size aggregate as well. The 1000SR is a closed-circuit version of the 1000 Maxtrack which incorporates the 1000 Automax crusher. It includes the same screen, recirculating and stockpiling features as the 4242SR and is suitable for both secondary and tertiary applications where controlled single-size aggregate and ‘all-in’ sub-base are required. In addition, three new contractors’ pumps incorporating the Electroprime dry-running vacuum pump system will be unveiled to the industry. Tel: (01530) 518600
Derrick Corp.
Since their inception in 1951, first-time Hillhead exhibitors Derrick Corp. say they have been committed to providing the most advanced high-frequency screening and solids control technology available throughout the world. Based in Buffalo, New York, USA, Derrick Corp. are a fully integrated manufacturing facility supplying the aggregates industry with a high-performance fines-recovery system which ranges from rugged and reliable dewatering equipment to patented urethane and steel screen surfaces. Tel: +1 716 683 1169
Finlay BME Ltd
As part of the company’s diversification strategy, Finlay BME Ltd will be exhibiting a new range of mobile crushers and screens under the Fintec brand name. Sandvik Rock Processing have made a 40% equity investment in Finlay BME to design, manufacture and market a ‰ range of mobile crushers and screens targeted at the recycling and contractor markets. As well as the Fintec 540 tracked screen, the larger Fintec 570 screen, the Fintec 1170 jaw crusher and the next-generation mobile block-making machine, the F44SU, will also be on display. Tel: (028) 8556 7799
Heathway
Heathway will be demonstrating their Red Rhino fully mobile diesel/electric mini jaw crusher. Designed to crush even the hardest of rubbles, including concrete and stone, the machine is easily transportable and offers variable jaw settings to alter the size of the crushed output from 20mm to 100mm. Suitable for recycling building materials for reuse on site, the Red Rhino is designed to cut the cost of bought-in aggregate and to reduce disposal costs and the need for skip or muck-away services. Tel: (01908) 224730
MAN TAKRAF Fordertechnik GmbH
First-time exhibitors MAN TAKRAF of Leipzig, Germany, are leading suppliers of large crushing plants and conveyor systems for the quarrying and mining industries. Offering a complete service in the field of plant engineering, they are currently involved in the design and supply of two large semi-mobile primary crushing plants to two UK quarry companies. The plants are rated at 2,500 tonnes/h and 4,500 tonnes/h, respectively, and in both cases the rock to be crushed is granite. Installation is scheduled to take place during 2004/2005. Tel: +49 341 2423 500
Mac’s Engineering
Making their debut appearance at the show, Mac’s Engineering specialize in double-deck resonance screens which offer the following advantages: balanced-mass design; linear oscillation with positive conveying, no sliding and long screen-cloth life; horizontal screens for the highest classification accuracy; low power consumption; and long stroke amplitude for effective stratification of material. The company also design and build vibrator screens and feeders to suit all applications. These benefit from stainless steel or mild steel construction, unbalanced motors for linear oscillation, and coil spring or Rosta suspension. Tel: +27 34 981 4087
Parker Plant Ltd
Parker Plant will be exhibiting their ‘future concept’ RT16 tracked primary crusher which incorporates many new features including fully hydraulic crusher setting complete with overload protection, ergonomic controls and hydraulic valve housings, and a twin-bed vibrating feeder for increased fines removal. The machine is designed to operate in the most efficient manner possible by allowing only crushable material to be presented to the crusher, free of fines. The fines are scalped on to a feeder under-tray and discharged via the crusher bypass chute. Tel: (0116) 266 5999
Powerscreen International Distribution Ltd
With a separate stand area focusing on screening plants for quarrying and extractive applications and part of the display concentrating on recycling equipment, Powerscreen International will be introducing a number of new machines to the industry at this year’s show. Among the new models will be: the Warrior 1800 high-output, three-way-split screener/stockpiler along with its smaller stablemate, the Warrior 1400. The Powertrack 1400, designed and built to meet the demands of customers requiring a higher stockpiling capability up to 4m, will also be making its UK debut, together with the new Commander 1400 rinser. On the recycling side, the new Trommel 615, available in both static and tracked versions, will be making its UK debut at this year’s show, alongside the new Powerscreen picking station, water bath and MDS4 mobile density separator. Tel: (028) 8774 0701
Powerscreen Washing Systems
Powerscreen Washing Systems will be exhibiting several new items of equipment including the 20 x 6 triple-deck rinser, the Powerscrub 120R and the Fines Master 120 and 160. With a 120ft2 deck, the triple-deck rinser provides higher tonnages at smaller apertures, while the Powerscrub 120R, with a typical capacity of 120 tonnes/h, is specifically designed to separate contaminants from saleable material in recycling or aggregate applications, and the Fines Master, with its high-capacity twin bucket wheel, allows the production of one or two grades of sand, typically offering 98% recovery of all material above 75µ and 100% recovery above 150µ. Tel: (024) 7640 5100
Viper International Ltd
Viper will be introducing two new screening products at year’s show – the Viper Discovery and the Viper Kompaq. The Discovery is a track-mounted, low-ground-pressure machine featuring a 4.5m x 1.8m high-frequency vibration double-deck screen box. Equipped with a rugged apron plate feeder capable of handling large lumps, the machine is designed for heavy-duty applications such as quarried stone, recycled concrete and other construction and demolition debris. The Kompaq is a small but robust track-mounted screening machine with a double-deck, four-bearing, 2.4m x 1.2m screen box. Suitable for waste recycling, pipe padding, sand and gravel operations etc, the machine’s compact size makes it easy to manoeuvre around congested sites. Tel: (028) 8774 0926
Materials Handling Plant & Equipment
Flexible Steel Lacing Co. Ltd
Flexco will be launching their new Rockline range of belt conveyor products. Offering easy, do-it-yourself installation, quick maintenance and effective results, the range includes pre-cleaner and secondary cleaners, belt ploughs, belt positioners and skirt clamps. Also featured on the stand will be Flexco’s complete range of belt fasteners and installation tools, rubber and ceramic drum lagging, and the new weld-on ceramic lagging for on-site applications where cutting of the belt is to be avoided. Tel: (01457) 891000
GAME Engineering Ltd
GAME Engineering, turnkey materials processing and handling engineers and
first-time Hillhead exhibitors, will be using the show to highlight their recent appointment as official UK distributors for the ARCH Environmental Equipment range of specialist belt conveyor efficiency products for the quarrying industry. The ARCH product range includes fogger systems, dust-suppression systems, conveyor belt cleaners and scrapers and other environmental equipment. GAME Engineering offer complete project solutions tailored to customers’ specific needs. Tel (01522) 868021
Guttridge Services Ltd
Guttridge, the Lincolnshire-based materials-handling specialists, will be exhibiting at Hillhead for the first time. The company specialize in screw conveyors/feeders, bucket elevators and drag-link conveyors, as well as purpose-built conveyors and ancillaries. Recent contracts include conveyors and elevators for Lafarge, Lagan Cement and Buxton Lime Industries. A number of sample machines and components will be on display at the show. Tel: (01775) 765300
Haith Industrial
Haith Industrial, specialists in mechanical handling and waste/water treatment, will be introducing several new products at the show including the launch of a fully automatic, self-discharging side-bar filter press. In addition, for bagging and palletizing applications, Haith will be exhibiting the latest Kawasaki Robot ZD 130S, which is 10% quicker than previous models. Incorporating the latest-design PLC controller, Haith have further enhanced the performance capabilities of the hand mechanism. Finally, the company will also be showing the latest WAM concrete reclaimer for recycling the wash-out from concrete truckmixers. Tel: (01909) 730836
Marsden Weighing Group
First-time exhibitors Marsden Weighing Group will be showing their portable weighbridges at Hillhead 2003. Their TS-300-GSX, which is suitable for the most demanding applications, can be installed on any reasonably horizontal concrete or asphalt surface capable of carrying a fully loaded truck. It requires no special transport to move it and can easily be set up (or dismantled) within a day using a standard fork-lift truck. All the weighbridge parts, including load-cells and mounts, remain easily accessible after installation for uncomplicated maintenance and easy cleaning. The TS-300-GSX is available in all popular sizes and capacities together with a complete range of indicators and terminals/printers. Marsden Weighing Group will also be exhibiting a selection of their industrial platform scales and digital counting scales. Tel: (0845) 130 7330
Muller Beltex
Making their first appearance at Hillhead, Muller Beltex have been supplying wear- and abrasion-resistant Kryptane urethane liners to the aggregates, concrete and cement industries for more than 20 years. Kryptane has been proven to outlast rubber, hardened steel, UHMW and other urethane liners in areas where sliding or impact wear is a problem. Being flexible and light, it is easy to fit and can also give significant noise reduction. Muller Beltex, whose range includes spares for elevators and conveyors, offer fitting and maintenance through a UK partnership. Tel: (01535) 630369
PM Onboard Ltd
PM Onboard will be introducing their recently launched four60DB Comcentre, a versatile information and data system designed to meet a wide variety of on-board applications for virtually all types of on- and off-road vehicles. Modules can be individually selected and updated to cover: weighing, GPS and mapping, email and text messaging, camera, radio and TV. Tel: (01274) 771177
Precia-Molen UK Ltd
At Hillhead 2003 Precia-Molen will be launching the VS400S, a versatile weighbridge suitable for either surface or pit installation which, when provided with entry and exit ramps, is transformed into a fully transportable weighbridge capable of being installed and ready for use within one day. The VS400S is supported on six Precia-Molen ASL digital load-cells. This year’s show will also see the launch of the I300 low-cost weighing terminal, a new addition to Precia-Molen’s range of plug-and-play weighbridge instrumentation, featuring a user-friendly graphic display suitable for use in harsh industrial environments. Also on the stand for the first time will be the latest range of Precia-Molen belt scales and controllers. Tel: (01527) 590320
Rexnord
At Hillhead 2003 Rexnord will be showing a Rex Spiral return idler, a device that presents an ever-changing point of contact on the conveyor belt surface. This varying point contact results in a scrubbing action that removes material from the belt surface with no negative impact on the belt splice or belt training. Available in 450mm to 1,800mm widths, the Spiral return can be fitted to any standard return configuration and is a suitable belt cleaner for single-direction belts where temperatures do not exceed 100ºC. Tel: +32 2 255 83 12
Telestack International Ltd
Telestack International, specialists in the design and manufacture of 15–42m road- and site-mobile conveyors, will be launching a new, compact, telescopic radial conveyor at this year’s show. Designed for mobile contractors and quarry operators who require high-quality stockpiling with flexibility and safety, the new 15–25m model will remove the need for, and cost of, remixing or building stockpiles using a loading shovel. By creating a series of windrow stockpiles, the new Telestack TS-525 will allow customers and road specifiers to receive consistently in-specification aggregate, without segregation, degradation or contamination. Available from July, the new, fully automated TS-525 will be road and site mobile, and will feature direct-drive motors and ‘sealed for life’ bearings as standard. Safety features will include guarding, lights, sirens and emergency grab wires. Tel: (028) 8225 1100
Ancillary Plant, Equipment & Services
Armcon Cemen-Tech
Armcon Cemen-Tech will be showing the latest Armcon truckmixer, which is now capable of handling recycled materials owing to a special, larger mixing auger that gives fast, high-shear mixing. Armcon’s new Armfoam chemical can be introduced to the mix, allowing the concrete to be ‘foamed’ to match the density of the surrounding ground conditions for efficient trench reinstatement. Vehicles are available with 4m3, 6m3 and 8m3 capacities with a production rate of 2min/m3. Tel: (0161) 429 0011
Bomag (Great Britain) Ltd
Roller manufacturers Bomag will be displaying the world’s first automatic compaction optimization system – the award-winning Variomatic with Asphalt Manager. Variomatic eliminates common compaction problems such as aggregate crushing, drum bounce and edge shove by identifying changes in material composition, thickness and temperature and continuously optimizing the performance of the roller. Meanwhile, Asphalt Manager continuously displays and records asphalt stiffness during compaction. Also on display will be Bomag’s 4-tonne BW138AD tandem roller as well as their range of 3-, 2.5- and 1.5-tonne light-to-medium-duty tandem rollers. Tel: (01622) 715240
Bridgewater Paper Co. Ltd
First-time exhibitors Bridgewater Paper Co. will be demonstrating how a by-product of the recycling of newspapers and magazines can be used in combination with existing soils, sand or quarry waste to provide a good growing medium for grass, shrubs and trees. Available in large quantities at a consistent quality, the product (a fibrous, crumbly material comprising an intimate mix of wood fibre and china clay) can help achieve a high standard of restoration at minimal cost at sites lacking in suitable soil materials. Visitors to the show will be able to see a section of the bank adjacent to the Ramp which was treated with the product and seeded with grass in March. Tel: (0151) 357 6371
Flender Power Transmission
One of the world’s largest power transmission manufacturers, Flender Power Transmission, will be exhibiting at Hillhead for the first time, where they will show an extensive range of gear units, geared motors and ATEX-compliant couplings for heavy industry. Flender supply high-performance products for the world’s most hostile environments, ranging from quarrying and materials handling to power generation. One example is the FZG helical/bevel helical unit which offers torque capacity in excess of 850,000Nm and ratios from 1.25:1 up to 462:1. Other established Flender products include Motox geared motors and Cavex worm gear units. The company will also demonstrate their mobile GearController diagnostic condition-monitoring system. Tel: (01274) 657700
Holtite Ltd
First-time exhibitors Holtite, who specialize in the hire, sales and service of lifting, anchoring and mooring equipment, will be on hand to demonstrate their lightweight edge- and fall-protection safety equipment for the quarrying industry. Both systems are easy to assemble and dismantle and provide an effective barrier between quarry workers and the edge of the quarry face. Components include the Holtite safety post, ratchet restraint and safety-net systems. Tel: (01384) 560611
Hycontrol Ltd
Hycontrol will be launching three new products at Hillhead 2003 – a low-cost, non-contact level transmitter; a radar-based bitumen level measurement system; and a crusher box level measurement system. Suitable for use in many level applications, Microflex-C is an easy to install two-wire loop powered transmitter featuring an 8m measuring range and an LCD display and push-button programming routine. For bitumen storage tank level measurement, the new TDR (time domain reflectometry) radar system is immune to the effects of bitumen coating and provides an output signal to a display panel(s) warning of overfilling. Meanwhile, an upgrade to the well proven Miniflex system means the device is now capable of solids measurement, making it suitable for controlling crusher feed. Providing a continuous output proportional to level, or by two control relay set points, the unit is able to cope with varying amounts of dust and changing crusher bowl conditions. Tel: (01527) 406800
Invicta Vibrators
Invicta will be exhibiting their new range of hydraulic vibrators, specifically developed for use on mobile and static machinery in the quarrying and recycling industries. The range starts with the HV25, which is capable of generating 786kg of force, and goes up to the HV60, which can generate 10,500kg of force. The HV vibrators produce a rotary action and are equivalent to Invicta’s proven L-series rotary electric vibrators. Where linear motion is required from a single unit, the HVL range can be used. Operating on the exciter principle, the HVL50 generates a maximum force of 15,300kg. Tel: (01476) 566301
Magotteaux
First-time exhibitors Magotteaux will be demonstrating their expertise in the field of wear-resistant (friction, impact, heat, corrosion etc) steels, cast irons and composite materials suitable for use in all crushing and grinding applications. The company also offer design and production capabilities for the modernization of crushing, grinding, sorting and separation circuits. Magotteaux also manufacture the MAG’Impact crusher, featuring XWIN technology, which is said to offer reduced wear costs, greater production flexibility, quality products, ease of maintenance and installation, and greater reliability and safety. Tel: +33 3 24 41 36 80
Mixlance (Technical Services) Ltd
Mixlance will be introducing their ‘modular’ batch heater coating/recycling plant at this year’s show. The first plant of its type to be built, the low-level unit is a fully clad batch-heater mixer tower comprising four modules. The plant is designed to mix a complete range of coated and recycled products in batches ranging from a maximum of 3 tonnes down to a minimum of 500kg, with recipe-driven production being controlled by a state-of-the-art core PLC/PC control system. Component design ensures maximum production efficiency with optimum fuel, electricity and additive usage, while the plant’s low-level configuration reduces both environmental impact and civils costs, and also allows for improved transport logistics and rapid erection on site. Tel: (01530) 271333
Phoenix Engineering Co. Ltd
At Hillhead 2003 Phoenix Engineering will be introducing their two ranges of bond coat sprayers – the PD range of small sprayers up to 3,000 litres with a 2.2m spraybar, and the new JVW range with tank capacities from 7,000 to 20,000 litres with variable-width spraybars up to 4.6m, complete with full on-board computer monitoring. Phoenix Engineering also manufacture asphalt hot boxes and chipping spreaders. Tel: (01460) 63531
Proteus Equipment Ltd
Proteus Equipment will be launching their new 5.5m3 mobile hot box, which is available in a number of different configurations including: single or dual compartment; manual or auger discharge; and standard, tipper or multi-lift truck-body mount. Utilizing the latest insulation materials and low-maintenance heating system, the unit does not require a separate power supply. A key feature of the hot box is its low-rise, bi-folding and spring-assisted manual lid system, providing the operator with trouble-free, lightweight operation without increasing the height of the box when open. Tel: (01284) 753954
Selwood Ltd
Selwood will be unveiling a recently launched range of pumps which includes the 4in and 6in Seltorque units for solids handling, as well as the new silenced 200SA high-flow pump from a canopied range which offers noise levels as low as 62dB(A). Also featured will be the new 150 well-point dewatering unit, a twin primed pump that will pull 100ft3/min of vacuum and features a large water-separation facility, providing lower noise levels, reduced fuel consumption, significantly improved efficiency and better suction. Tel: (023) 8026 6311
Utranazz Ltd
Utranazz will be exhibiting their new range of low-level, fully transportable batching plants featuring: outputs from 50m3/h; a choice of two-, three- or four-bin configur-ation; low-level, fully transportable cement silos with capacities from 20–60 tonnes; complete with electronic weigh-batching equipment, off-loading legs and a fully computerized control panel. Also being shown for the first time will be the Sermac truck-mounted concrete pump with its 32m, five-section underfold placing boom (maximum output 120m3/h) mounted on a Mercedes 6x4 cab/chassis, together with a range of self-loading rough-terrain and self-loading truck-mounted concrete mixers. Tel: (01753) 654629
Vibracoustics Ltd
Vibracoustics design, manufacture and supply vibration- and noise-control products and systems for a wide range of industrial applications. Making their first appearance at Hillhead, the company will be displaying a wide selection of anti-vibration products including PD mounts and SLC and SLIC sandwich mounts, primarily designed for use on vibratory screens, crushers, mills, presses and feeder systems. Tel: (01509) 881333
