Engine upgrade and model name change for Cat mining shovel

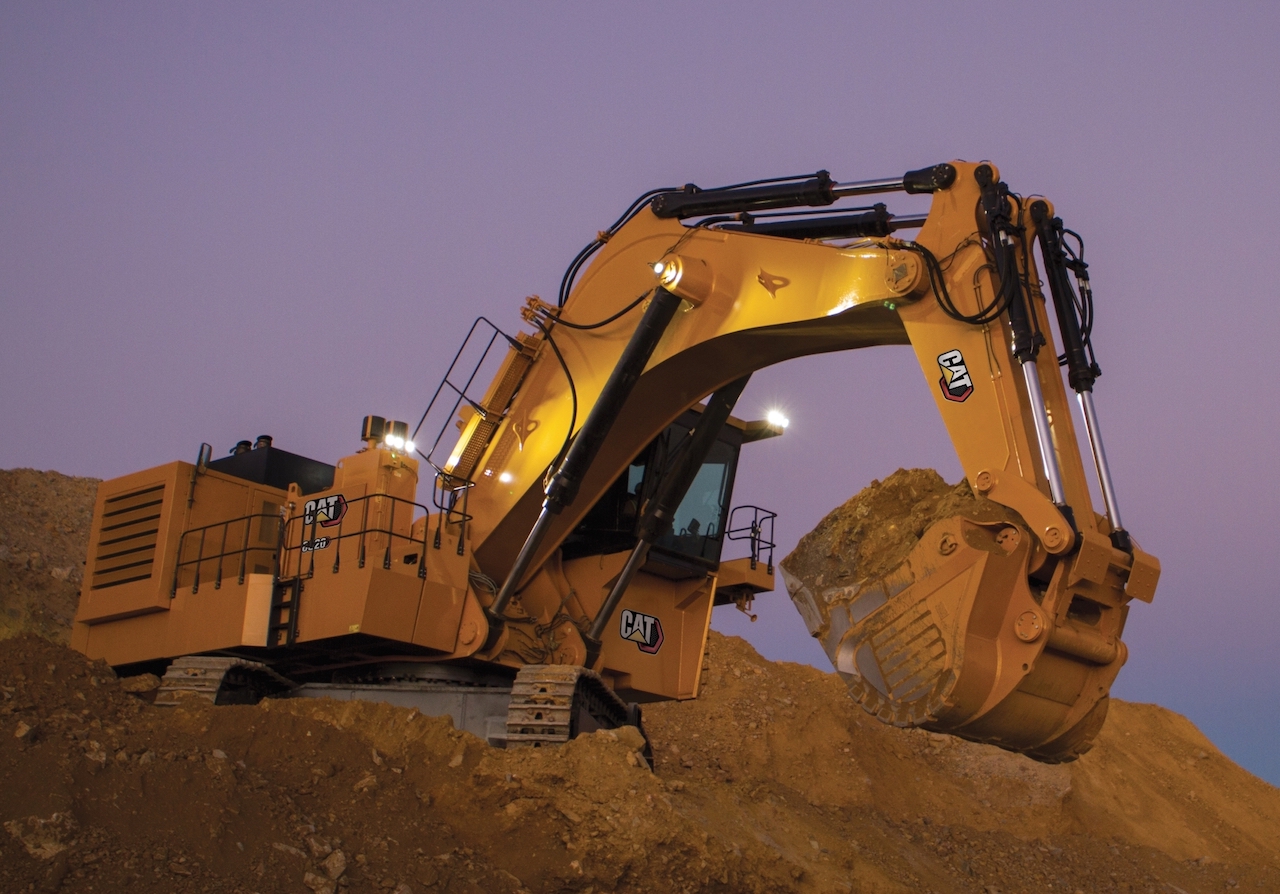

Cat 6020 hydraulic mining shovel features new engine for high uptime and efficiency plus additional durability
DESIGNED to power through the toughest materials, the Cat 6020 hydraulic mining shovel meets the industry’s need for durable, reliable, and highly efficient digging performance. To align with the rest of the Cat hydraulic mining shovel line-up, model nomenclature has been updated from the Cat 6020B to the 6020.
Today’s 6020 shovel offers the same features, fast cycle times and high reliability as its predecessor. Offering powerful performance, the next-generation engine powering the machine delivers improved reliability. Moreover, the 6020’s hydraulic optimization dynamically assigns individual pumps or groups of pumps to deliver the exact flow pressure that each hydraulic function requires, thereby reducing waste and heat, prolonging component lives, and improving fuel consumption.
The new Cat C32B engine replaces the previous Cat 32 engine to offer more reliable and durable operation. With designs certified to meet a range of emissions standards worldwide, the new engine offers the same 776kW (1,040hp) rated power as its predecessor and is a direct replacement for the C32. No additional hardware is required for engine replacement to upgrade existing machines in the field.
Higher oil flow and baffles in the oil cooler keep the engine core cooled and lubricated, whilst the engine’s new cylinder head with optimized water jacket maximizes heat transfer. The C32B’s ability to deliver higher power in certain applications comes from increased piston compression height.
An updated crankshaft and connecting rods with larger journals increase durability by reducing contact pressure and optimizing bearing performance, while a new cylinder block helps increase structural capability. All valves are equipped with oil metering stem seals and reduced contact pressure geometry for maximum life.
Increasing reliability, a thicker shim gasket reduces the risk of head-to-block oil leaks, whilst more durable exhaust valves, especially when operating at high power, reduce the chance of exhaust valve failures, and dual sensor coolant protection detects potential coolant leaks sooner than the previous capabilities to avoid costly downtime.
Hydraulic optimization for the 6020 shovel dynamically assigns individual pumps or groups of pumps to deliver the exact flow and pressure required by each hydraulic function. Reducing waste and excess heat build-up, hydraulic optimization provides efficient use of the engine for greater productivity, less energy and fuel consumption, and reduced component wear.
With its 22-tonne payload, the 6020 efficiently loads a Cat 775 truck in three passes, 777 in four passes, 785 in six passes, and 789 in eight passes. Designed for operator comfort, the next generation cab on the 6020 offers class-leading visibility for operating productively, safely, and efficiently. Electronic-hydraulic servo joystick control delivers fast and precise machine movements with less operator fatigue, while five-circuit hydraulics allow for simultaneous control of two cylinder motions, two travel motions, and swing. The large 10-in high-definition colour touchscreen puts all vital machine and diagnostic data at the operators’ fingertips.
A range of onboard and optional technology offerings boosts productivity, efficiency, and health of the 6020 shovel. The machine’s onboard control system employs multiple sensors to monitor operating data, record faults, and notify the operator audibly and visually for early detection of faults.
Factory-ready for Cat MineStar Solutions, MineStar Health is fully integrated as an option to deliver critical event-based and operating data. Also available are MineStar Fleet for real-time machine tracking, assignment, and productivity management; Terrain that enables guidance technology and high-precision management of shovel operators; and Detect to increase operator awareness and enhance safety.
