EDGE Innovate introduce the Screenpro S16
Company extends its line of screening solutions with more compact unit for medium-to-large-scale operations

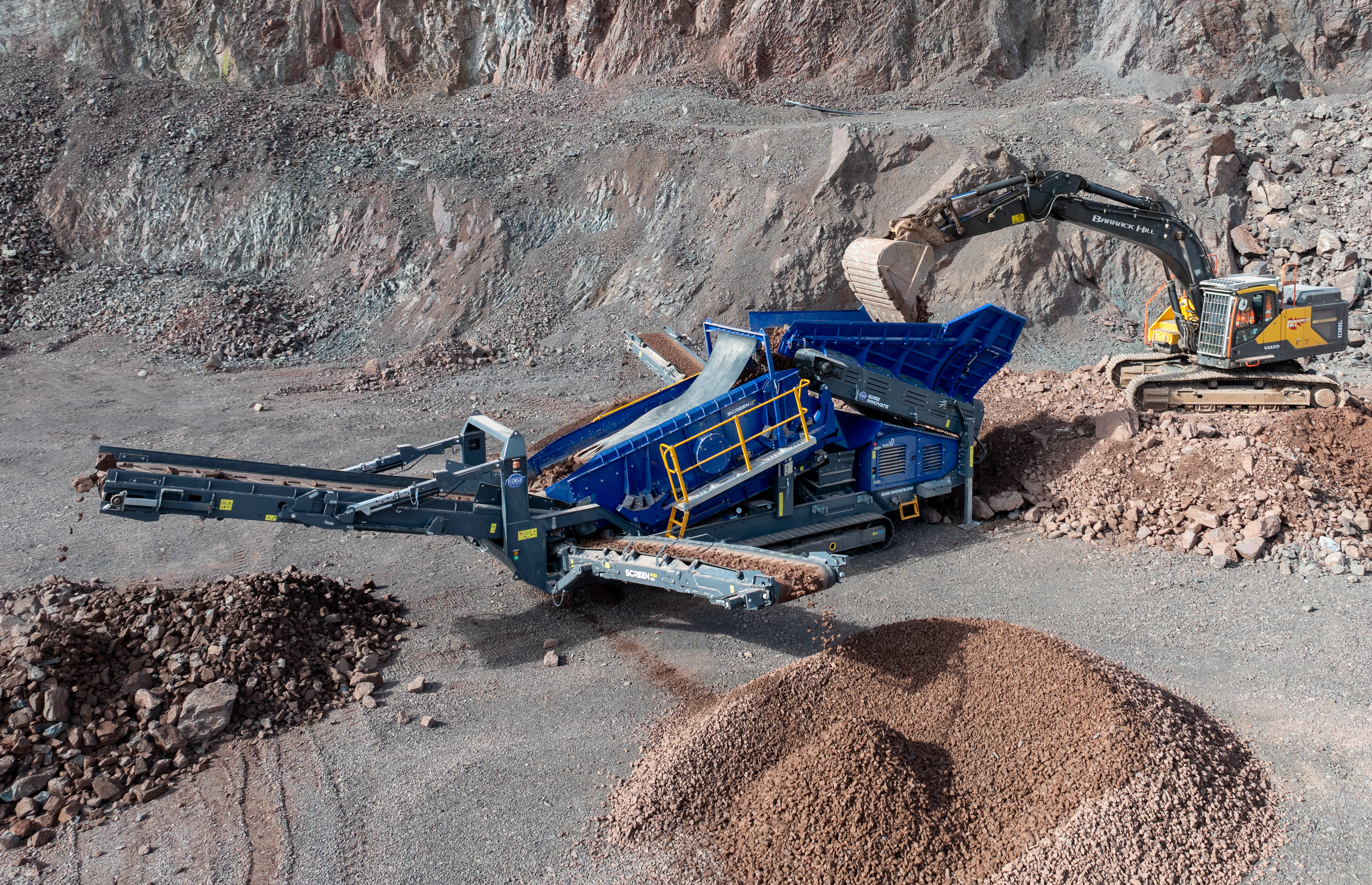

THE Screenpro S16 is the latest addition to the Screenpro range from EDGE Innovate, following the successful launch of the larger Screenpro S18 in 2024. Building on the proven performance and robust design of its predecessor, the S16 offers a more compact solution without compromising on efficiency or versatility.
Designed to handle feed capacities of up to 600 tonnes/h, the Screenpro S16 is well-suited to mid-to-large-scale operations, delivering high production rates with precise screening. It features a 14m2 screening surface with adjustable screening angles from 14–20 degrees, and a wide oversize discharge conveyor, ensuring both high throughput and superior product quality.
The Screenpro S16 incorporates a 4.9m x 1.5m (16ft x 5ft) two-deck screen with a heavy-duty feed hopper, making it adept at both primary and secondary screening across a variety of materials, from aggregates to construction debris and recycled materials. This versatility is further enhanced by a range of screen media options, including woven mesh, punch plate, finger screens, and bofor (grizzly) decks, allowing users to tailor the machine to different feed materials and final grain sizes.
To meet the demands of recycling applications, the Screenpro S16 can be equipped with both overband magnets and magnetic head drums for the extraction and recovery of ferrous metals.
With intelligent load management, a low-level feed hopper, two- or three-way-split configuration, hydraulic folding conveyors, and a fully integrated power unit with large service access, the Screenpro S16 is engineered for ease of use and maximum operational uptime. The user-friendly control system, featuring sequential start/stop functionality, enhances both performance and safety.
To ensure minimal downtime, the screenbox encompasses hydraulic lift-up functionality for quick and efficient mesh exchanges, supported by full access walkways on both sides of the screen.
The EDGE Screenpro S16 also offers added remote functionality for improved operator efficiency and safety. All major functions, including tracking, feed conveyor speed adjustment, sequential start-up and hopper jacklegs can be remotely operated from a safe distance of up to 100m or from the comfort of the loading operator’s cab.
Powered by either a Caterpillar Tier 4 Final/Stage V engine, the Screenpro S16 drive system provides the operator with a reliable, durable, and fuel-efficient screening solution. In line with EDGE Innovate’s commitment to sustainability, the S16 and S18 models are available with dual power and electric hybrid drivetrains for CO2 emission-free operation.
As the second product to be released in the Screenpro range, the S16 is said to offer the same level of reliability and innovation that EDGE Innovate customers have come to expect, but in a more compact form that meets the needs of diverse screening applications.
EDGE Innovate territory sales manager Steven Conway commented: ‘During the research phase, we engaged closely with our distribution network to discuss specifications and the core requirements for our customers. Now we have successfully designed and launched the Screenpro S16, which we feel is robust, reliable, efficient, and user-friendly. It’s also very easy to service, maintain, and transport – features that we see as core requirements for any customer in the quarrying and recycling industries.
‘We will continue to widen their product offering through the Screenpro range, allowing us to meet the varying applications and budgets of our customers. The Screenpro S18 and now the newly revealed S16 illustrate our commitment to innovation. Expect to see future additions to this range in 2025 as the EDGE Innovate team continue to enhance the Screenpro offering.’
